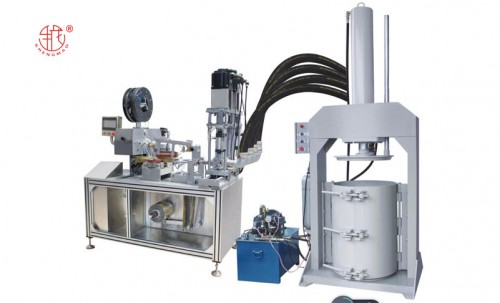

As the latest automatic production supporting equipment integrated with compound aluminum film –＞ tube-making filling and double-card sealing, JL-06 full-automatic compound aluminum film soft-bag filling double-card sealing machine is suitable for soft-packaged tube-making –＞ filling of glass cement and pasty materials and double-card sealing formation. The whole process of filling, sealing, card punching and cutting is controlled by PLC; the production process is in full-automation without manual intervention. The proportional valve is adopted; and the glue filling weight is precise. As a brand-new automatic production line, it can replace the sub-production complex process of former tube-making –＞ filling –＞ card punching, etc; and the process has improved the product quality and reduced the production cost.

The machine is mechanically driven by servo motor; multiple groups of cylinders are combined so as to finish the card punching function; and the machine has a compact structure and reliable drive. The parts and drive parts are manufactured by stainless steel and high-quality steel. The general mechanical performance and corrosion resistance of the complete machine can meet your production demands.

I. Brief introduction of structure

The double-card sealing machine is controlled by import PLC and mainly composed of a machine base, a machine body, a discharging device, a gas circuit system, an operation device, a silk plate support, etc.

II. Main technical parameters

1.Boundary dimension: length*width*height=1520*810*2000 (mm);

2.Total weight: around 280kg;

3.Height from card punching centre to the ground: 1000-1020mm;

4.Card punching speed: 15-40t/min;

5.Power: three-phase AC 380V;

6.Gas source: working pressure: 0.40-0.8Mpa;

7.Gas consumption: 0.01m3/min;

8.Applicable card type: Great Wall Card

9.Applicable range: fold diameter: 25-50mm
