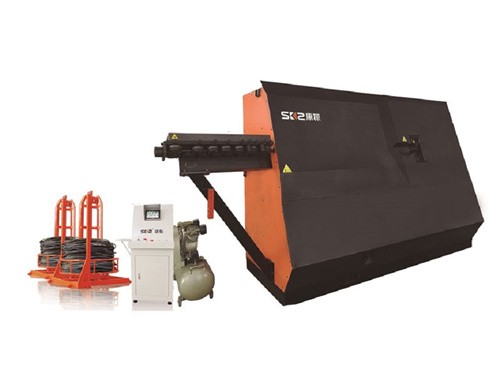

stirrup bending machine (KZ12AX)
Stirrup Bender Supplier
stirrup bending machine
Stirrup bender is designed to complete straightening,bending and cutting on one machine. Coil is the prefer raw material choice .The machine is capable of providing our clients the most accurate cutting, straightening, bending and high effect, which is widespread used in high speed railway, bridge, real estate, reinforcing steel processing factories , etc.
|
|
KZ12AX |
|
Raw material |
Coil |
|
Single wire Diameter (mm) |
φ5-13 |
|
Double wire Diameter (mm) |
φ5-10 |
|
Max Bending Angle (°) |
±180 |
|
Max Pulling Speed (m/min) |
110 |
|
Max Bending Speed (°/s) |
1000 |
|
Bending Direction |
Bi-direction |
|
Length Tolerance (mm) |
±2 |
|
Bending Tolerance (°) |
±1 |
|
Single Wire Max Production Capacity (hour) |
900(standard size) |
|
Double Wire Max Production Capacity (hour) |
1800(standard size) |
|
Overall dimension L*W*H (mm) |
12,000x3000x2000 |
|
Labeled electric power (kw) |
30 |
|
Central machine Weight (kg) |
3800 |
|
Cylinder Pressure (Mpa) |
≥0.6 |
|
Max.length of the stirrup side (diagonal) (mm) |
1450 |
Stirrup Bending Machine Product Advantages
1. Large processing range, can be bent forward and backward;
2. Fixed cutter can be used on both sides to improve service life and reduce cost;
3. Configure automatic feeding mechanism, saving time and effort;
4. Single Wire Diameter 5-13 mm, double wires 5-10 mm; precision and fast machining;
5. Stirrup Bending Machine has high precision of PLC control, LCD display is easy for operating, have mighty graphics library, it is able to communicate with management software;
6.KZ12AX Tilt front panel Diagnal length of max stirrups: 1450mm Specially for international market Mitsubishi PLC
7.SKZ of wire bending machine has been sold more than 3000 pieces around the world.
Steel Bending Machine Principle
The wire rod steel bar is firstly conveyed to the bending mechanism of the steel bar bending machine after horizontal straightening and vertical straightening, and then conveyed to the bending mechanism of the steel bar bending machine, and the flexible bending of the wishing elbow is controlled by the PLC program to quickly realize the bending forming process of the various shapes of the stirrups. Then, the finished product of the stirrup is cut by the steel cutting mechanism. The entire process is fully automated and requires no human intervention.
