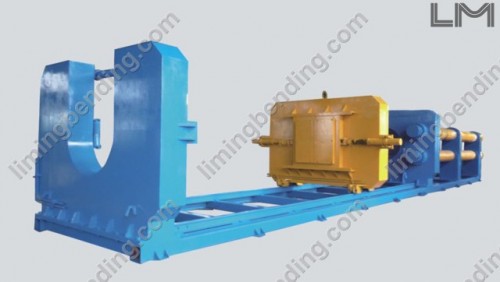

Φ1420 Elbow Machine

Product introduction

Equipment Specifications:
1. Producing Range: OD21mm-1420mm (1-56 inches)
2. Radius: 1D,1.5D,2D
3. Thickness: 3mm-100mm
4. Material: Carbon Steel, Alloy steel
Heating power part---Constant power output. Using the unique voltage stabilized technology, the output power can still be constant, even the input voltage fluctuated by 10%.The power supply have the advantage of energy saving ,environment friendly, small noise.
The induction coil can be adjusted by motor for movement of up and down, front and back ,rotary. Easy and safe to operate by handle control.
By adopting PLC control system, the elbow producing can be running automatically. One worker only need putting the material pipe to the feeding device which improved the producing speed , reduced the labor intensity .

Features: fast speed, no damage to the internal structure of the steel

Disadvantages: not suitable for stainless steel elbows

Applicable materials: carbon steel and various magnetic alloys

What is the elbow machine made of?

The components of the elbow machine: the main machine of the elbow pusher, hydraulic pump station, operating table, motor control cabinet, intermediate frequency power supply, compensation capacitor, water cable, intermediate frequency coil adjustment frame, reactor. The elbow machine can push the elbow with the largest diameter of Φ1420mm.

What are the advantages of elbow machine equipment?

1. The heating power supply part of the elbow machine-constant power output. Using unique voltage stabilization technology, even if the incoming line voltage fluctuates by 10%, the intermediate frequency output power can still be kept stable. Energy-saving, environmental protection, low noise, and low pollution.

2. The elbow machine adopts a hydraulic automatic feeding mechanism.

3. The gate of the elbow machine is opened and closed hydraulically.

4. The coil support of the elbow machine is adjusted up and down, front and rear, and swing by motor, which makes the operation safer.

5. The elbow machine adopts a two or four-cylinder push system according to the equipment needs, and the equipment runs more stably.

Li Ming Electrical Machinery Factory has been involved in the hydraulic field for more than 20 years. Based on the development idea of combining practice and theory, the enterprise has successively developed HET-A hydraulic four-cylinder push elbow machine, HEG-A pipe fitting simmering machine and elbow push two-cylinder dual-purpose machine, three-way cold drawing Hydraulic equipment such as large gantry and four-column universal presses, as well as various hydraulic equipment such as pipe expanders, pipe reeling machines, and cold push elbow machines, has obtained two national patents. In particular, the HET-A type hydraulic four-cylinder push cold push elbow machine is an integral form of the domestic large-diameter and high-pressure elbow, filling the gap.

Technical parameters

Φ1420 Elbow Machine Specifications:

1. Production Range:OD630mm-OD1420mm

2. Radius:1D,1.5D,2D

3. Thickness:5mm-100mm

4. Angle:45degree,90degree,180degree

5. Material:Carbon Steel,Alloy Steel

The hot elbow machine is suitable for oil, natural gas, chemical, electric power, construction, and other industries.

The principle of the elbow machine is induction heating and hydraulic cylinder pushing.

Elbow material: carbon steel, alloy steel, stainless steel, etc.

Used for producing the elbow.

The Elbow diameter range is Φ25-Φ1420.

The Elbow wall thickness range is 3mm-100mm.

The bending radius is 1D, 1.5D, 2D, nD.

Bending angle is 30°, 45°, 60°, 90°, 180°.

Equipment structure including heating power supply, Hydraulic system, Mechanical body.

heating power supply part: induction heating power supply, cooling water circulation system, operation cabinet (touch screen, PLC control system),

Hydraulic system: oil tank, pump station, hydraulic cylinder, oil pipe.

Mechanical body: hydraulic cylinder support, push plate, chassis, export support, feeding structure, coil support, etc.

Auxiliary equipment for elbow machines: band sawing machine, hydraulic press, beveling machine.
