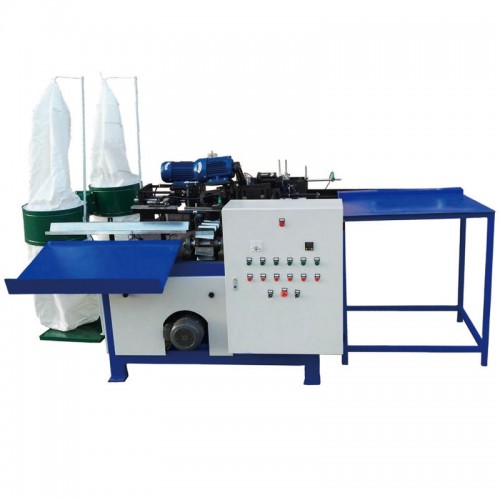

CWM-1300H Automatic paper cone finishing machine

Uses:

 The finishing finishing machine is the last process of producing the pagoda paper tube. It belongs to special production equipment and can produce deep processing of 5 ° 57, 4° 20 and 3° 30 cone paper tubes. The production process of the machine is automatically discharged and oiled. Elbow, pressure line, V-shaped mouth, surface pulling, vacuuming for integrated production, one-time completion, to achieve the product yarn tube.

Technical parameter：

  Control System:

Mechanical size and weight:

 Mechanical manufacturing structure:

1、The frame is made of high-precision thick and heavy square tube. The table top is made of steel plate, and the structural components are processed by high-quality materials.

2、The main part is welded by thick and heavy steel plate after CNC cutting, which is not easy to deform and has small vibration.

3、The main motor adopts vector type high torque frequency conversion speed regulation, hard tooth surface gear reduction, low noise, low heat, high speed and large torque.

4、 Using PLC control output control and function splitter rotation to improve operational stability, control is more accurate than ever.

5、The brushing part adopts servo motor, controllable digital speed regulation, stable operation, convenient operation and arbitrary speed increase power configuration.

6、modular electrical layout, use, maintenance, maintenance is more convenient and scientific.

7、 The chain conveyor paper tube is smoother and vibration-free.

8、At different operating speeds can ensure the consistency of the paper tube elbow length, clear hair and so on.Mechanical size and weight:
