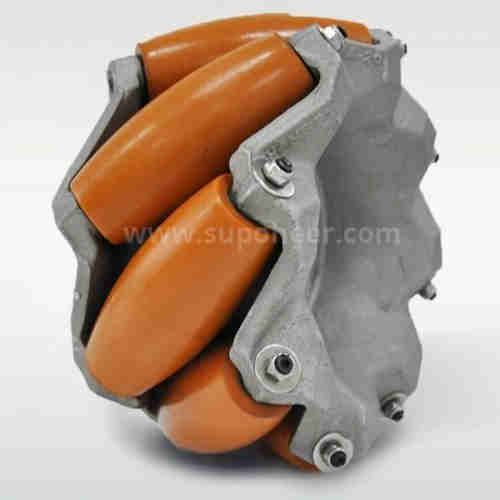

CMA-25 Mecanum Wheel mecanum wheel agv agv drive wheel AGV Accessories
Product Description
The CMA series Mecanum Wheel provides a maximum load capacity of 4500 kg while maintaining a high standard of accuracy. The use of patented integrated wheel hub molding technology maximizes the mechanical properties of the material. CMA's full range of products are designed with rolling bearings, and the surface of the driven wheel is made of polyurethane, which has good performance in stability, quietness, reliability, and omnidirectionality, and can adapt to indoor and outdoor applications.
Characteristic
The wheel hub is integrally formed, high strength,
High rigidity rolling bearing design
Load capacity covers 0~4500kg industrial grade quality
Dimensions
|
Length: |
254mm |
|
Number of side wheels: |
8 |
|
Width: |
135mm |
|
Wheel surface treatment: |
double-layer high temperature baking |
|
Flange thickness: |
10mm |
|
Inner diameter of flange cavity: |
114mm |
|
Self weight: |
12.5Kg |
|
Flange screw: |
6-M10 bolt |
|
Wheel Material: |
Polyurethane |
|
Bearing type: |
Rolling bearing |
|
Connection form: |
Flange |
|
Flange diameter: |
100mm |
|
Typical center hole: |
50mm |
|
Load capacity: |
400Kg |
SUOFU is a professional foreign trade company engaged in import and export trade. The company's main business scope includes handheld laser welding machine, automated guided vehicle AGV, etc.
