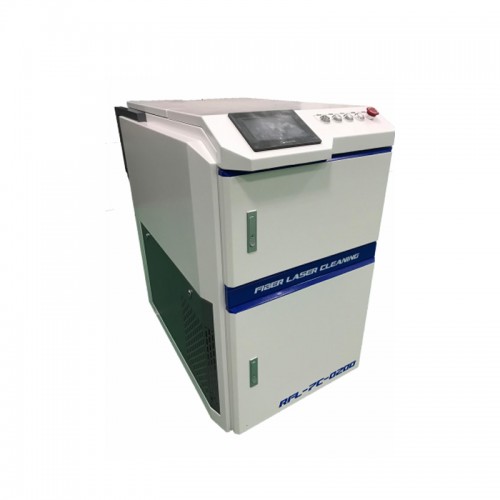

XQL RFL-7C-0200 Laser Cleaner
The product description
Laser cleaning technology refers to the use of high power density laser beam irradiation on the surface of the workpiece, so that the surface of dirt, rust or coating immediately evaporate or peel off to realize the cleaning process.
The cleaning equipment is a new high-tech product with a representative surface that is easy to install, operate and automate. Easy operation, boot.
Can clean the source without the use of chemicals, media, dust and water. It can remove resins, paints, oil stains, stains, grime, rust, coatings, coatings and oxide layers, and is used in a wide range of industries, including covering boats, auto repair, rubber molds, high-end machine tools, guides and rust. Disassembly, three-round cleaning, tubing cleaning, paint cleaning, etc.,
The product features
Non-contact cleaning, does not damage the component base.
Precise cleaning enables selective cleaning of precise position and size.
No chemical cleaning fluid, no consumables, safe and environmental protection.
The operation is simple, only need to add power, can be manually or with the robot for automatic cleaning.
High cleaning efficiency and time saving.
Laser cleaning systems are stable and require little maintenance.
Parameters
Operating environment and related parameters
|
Operating environment |
|
|
Content |
Parameters |
|
Supply voltage |
Single phase 220V±10%, 50/60Hz Alternating current |
|
Machine power consumption |
2500W |
|
Environment |
Flat, no vibration, no impact |
|
Working temperature |
0℃～40℃ |
|
Working environment humidity |
≤80% |
|
Optical parameter |
|
|
Content |
Parameters |
|
Laser average power |
≥200 W |
|
Power adjustment range (%) |
10-100(Adjustable) |
|
Repeat frequency（KHz） |
20-50（Adjustable） |
|
Cleaning efficiency（m2/h） |
5 |
|
Focal length（mm） |
210/160 |
|
Cooling method |
Water Cooling |
|
Mechanical parameter |
|
|
Content |
Parameters |
|
Machine Size |
1100mm×700mm×1150mm |
|
Weight |
270Kg |
|
Cleaning head weight |
2.5Kg |
|
Scan width |
10-80mm |
|
Moving way |
handhel |
More information please click here.
