Vertical Packing Machine WEIWANG PACK(VFFS)
Automatic weighing packing machine line WW-320W/420W/520W/720W/1050W/1200W
Application: Suitable for a variety of metering equipment, packaging a variety of products; Such as: puffed food, shrimp roll, ice, frozen food, potato chips, peanuts, popcorn, corn flour, seeds, sugar and so on.

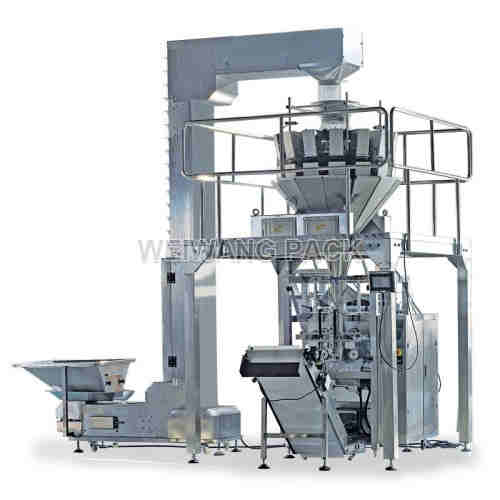

Automatic Weighing Packing Machine WEIWANG PACK
Multihead Weigher (1/2/4/10/14/16/20/24heads)
Automatical Z-type bucket elevator
Supported Platforms
Finished product conveyor
Weight inspection procedure
Metal detector
Rotary table
Automatic conveying and weighing products and forming a film sealing bag.
Automatic weighing - filling - sealing type, easy to use.
Use famous brand electric and pneumatic components, stable and long life circle.
Combination scale improves packing speed and precision
Auto correcting the excursion of the film, easy to install film
PLC system, easy for parameters adjusting
Touch screen with multiple language
https://www.wwpackmachine.com/product-automatic-weighing-packing-machine.html
According to customer requirements, customized packaging ice, ice roller, ice, frozen food.
|
Type |
WW-320 |
WW-420 |
WW-520 |
WW-720 |
WW-1050 |
WW-1200 |
|
Packing speed |
10-80 bag/min |
10-70 bag/min |
5-60bag/min |
5-60bag/min |
5-40bag/min |
5-30bag/min |
|
Bag Length |
50-200mm |
50-300mm(L) |
80-370mm(L) |
80-470mm(L) |
100-570mm(L) |
100-800mm(L) |
|
Bag width |
40-150mm |
50-200mm(W) |
80-250mm(W) |
100-350mm(W) |
180-450mm(W) |
200-580mm(W) |
|
The max. roll film width |
320mm |
420mm |
520mm |
720mm |
1050mm |
1200mm |
|
Air consumption |
0.65mpa |
0.65mpa |
1.0mpa |
1.0Mps |
1.0Mpa |
1.0Mpa |
|
Air consumption |
0.25m3/min |
0.3m3/min |
0.4m3/min |
0.4m3/min |
0.5m3/min |
0.5m3/min |
|
Power |
220V 50/60HZ 2Kw |
220V 50/60HZ 2.2Kw |
220V 50/60HZ 2.7Kw |
220V 50/60HZ 3Kw |
220V 50/60HZ 6kw |
220V 50/60HZ 6kw |
|
Overall size(L×W×H) mm |
1200×700×1520 |
1080×1300×1400 |
1650×1170×1700 |
1700×1270×1900 |
1750×1510×2100 |
2400×1800×(H) 2750 |
|
Weight |
400KG |
600Kg |
800Kg |
900Kg |
1000Kg |
1200Kg |
|
Type |
10 head weigher |
14 head weiher |
Other type multihead weighr, please contact with us. |
||||||
|
Max. Single Dump Cap. (g)
