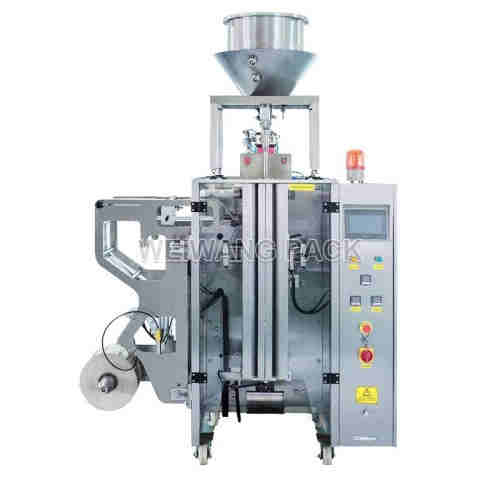

Liquid pouch packing machine WEIWANG PACK-320L/420L/520L/720L/1050L/1200L
Application: Suitable for many kinds of liquid ,such as: milk, oil, shampoo, sauce, jam, juice, cream, paste, etc.
Optional Combined Parts
All kind of vertical packing machine
Paste/liquid filling machine
Finished products conveyor
Weight checker
Metal checker
Rotating table
Full automatic feeding measuring product and form film seal bags.
Full-automatic Dosing-Form-Fill-Seal type, efficient and simple to use.
Stainless steel 304 machine structure.
Easy to install film, auto correcting the excursion of the film.
PLC Computer control system ,machine performance is more stable and convenient for parameters adjusting.
You can click here to get the pouch packing machine price
High accuracy liquid/paste filling system, anti-drip design
Touch screen with multiple language
Optional Device: Date coder, Hole punching device (Pinhole,Round hole, The butterfly hole), Linking bag control device, Airfilling device, Air exhaust device. Tear notch device, Nitrogen inflation device, Gusset bag.
https://www.wwpackmachine.com/product-liquid-pouch-packing-machine.html
|
Type |
WW - 320 |
WW - 420 |
WW - 520 |
WW - 720 |
WW - 1050 |
WW - 1200 |
|
Packing speed |
10 - 80 bag / min |
10 - 70 bag / min |
5 - 60bag / min |
5 - 60bag / min |
5 - 40bag / min |
5 - 30bag / min |
|
Bag Length |
50 - 200mm |
50 - 300mm(L) |
80 - 370mm(L) |
80 - 470mm(L) |
100 - 570mm(L) |
100 - 800mm(L) |
|
Bag width |
40 - 150mm |
50 - 200mm(W) |
80 - 250mm(W) |
100 - 350mm(W) |
180 - 450mm(W) |
200 - 580mm(W) |
|
The max. roll film width |
320mm |
420mm |
520mm |
720mm |
1050mm |
1200mm |
|
Air consumption |
0.65mpa |
0.65mpa |
1.0mpa |
1.0Mps |
1.0Mpa |
1.0Mpa |
|
Air consumption |
0.25m3 / min |
0.3m3 / min |
0.4m3 / min |
0.4m3 / min |
0.5m3 / min |
0.5m3 / min |
|
Power |
220V 50/60HZ 2Kw |
220V 50/60HZ 2.2Kw |
220V 50/60HZ 2.7Kw |
220V 50/60HZ 3Kw |
220V 50/60HZ 6kw |
220V 50/60HZ 6kw |
|
Overall size(L × W × H) mm |
1200 × 700 × 1520 |
1080 × 1300 × 1400 |
1650 × 1170 × 1700 |
1700 × 1270 × 1900 |
1750 × 1510 × 2100 |
2400 × 1800 × (H) 2750 |
|
Weight |
400KG |
600Kg |
800Kg |
900Kg |
1000Kg |
1200Kg |
|
Fill range |
Voltage |
Air pressure |
Weight(kg) |
Dimension(mm) |
||||
