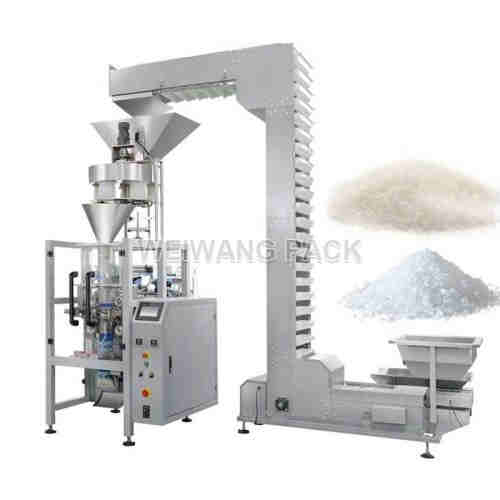

Granule packing machine WEIWANG PACK-320C/420C/520C
Application: Suitable for many kinds of small granule products; such as rice, popcorn, pea, detergent powder, spice, sugar and salt etc.
Vertical packing machine
Volume cup filling machine
Finished products conveyor
Weight checker
Metal checker
Rotating table
Automatic cup weighing products and forming a film sealing bag.
Automatic dosage form - filling - sealing type, easy and quick to use.
Stainless steel 304 machine construction
Horizontal and vertical sealing temperature is adjustable, more suitable for different kinds of packaging film
PLC control, easy for parameters adjust
Simple filling system for granule products, fast packing speed
Touch screen with multiple language
The horizontal and vertical sealing temperature of the high speed packing machine can be adjusted, which can be better adapted to different types of packaging films.
https://www.wwpackmachine.com/product-granule-packing-machine.html
Date printing at the same time
Our affordable, easy-to-use packaging machines are suitable for companies looking to automate their packaging processes for the first time or for larger producers looking for greater productivity and efficiency.
|
Type |
WW-320 |
WW-420 |
WW-520 |
|
Packing speed |
10-80 bag/min |
10-70 bag/min |
5-60bag/min |
|
Bag Length |
50-200mm |
50-300mm(L) |
80-370mm(L) |
|
Bag width |
40-150mm |
50-200mm(W) |
80-250mm(W) |
|
The max. roll film width |
320mm |
420mm |
520mm |
|
Air consumption |
0.65mpa |
0.65mpa |
1.0mpa |
|
Air consumption |
0.25m3/min |
0.3m3/min |
0.4m3/min |
|
Power |
220V 50/60HZ 2Kw |
220V 50/60HZ 2.2Kw |
220V 50/60HZ 2.7Kw |
|
Overall size(L × W × H)mm |
1200 × 700 × 1520 |
1080 × 1300 × 1400 |
1650 × 1170 × 1700 |
|
Weight |
400KG |
600Kg |
800Kg |
